What should you check before choosing an FPSO design?

Why checking an FPSO design carefully matters

Choosing the right FPSO design can directly affect safety, lifecycle cost, and long-term operational efficiency. For offshore projects, every design decision influences uptime, maintenance access, corrosion behavior, and production stability.

This is especially important when piping materials, process fluids, and marine exposure interact. In many FPSO systems, glass-based composite materials and engineered non-metallic piping can improve corrosion resistance and reduce weight.

A structured FPSO checklist helps compare options objectively. It also reduces the risk of selecting a design that performs well on paper but fails under offshore temperature, pressure, vibration, or chemical exposure.

Why a checklist approach works better for FPSO design

An FPSO design combines hull integration, topside modules, piping, storage, utility systems, and safety barriers. These parts are interdependent, so one weak choice can affect the entire operating envelope.

Checklist-based review forces attention on measurable items. It shifts discussion from assumptions to verified design data, material compatibility, inspection records, and long-term service requirements.

For glass and ceramic material relevance, the review should focus on GRE piping, lining systems, insulation interfaces, and chemical resistance where metallic corrosion is a known concern.

Core FPSO design checklist before final selection

1. Verify process conditions early, including pressure, temperature swings, produced water chemistry, solids content, and cleaning media, because these define the safe material window for the FPSO piping design.
2. Check corrosion exposure in detail, especially seawater, chloride-rich fluids, sour service, and chemical injection points, since these often justify GRE pipe or non-metallic components over carbon steel.
3. Review pipe material compatibility with hydrocarbons, gas, brine, methanol, and treatment chemicals to confirm the selected FPSO design will not suffer swelling, permeation, softening, or premature degradation.
4. Confirm mechanical loads across the full system, including vibration, surge, sloshing influence, support spacing, and nozzle loads, because offshore movement can overstress poorly supported composite piping.
5. Inspect fire performance requirements carefully and compare passive fire protection, deluge exposure, and escape route criteria with the selected piping materials, joints, and insulation details in the FPSO layout.
6. Assess fabrication quality controls, such as winding accuracy, resin cure consistency, hydrostatic testing, and dimensional inspection, to ensure repeatable performance from GRE pipes and fittings.
7. Examine connection philosophy, including flanges, adhesive joints, laminated joints, and transition spools, because interface failures often appear first in an FPSO piping system under cyclic loading.
8. Check maintainability and replacement access for valves, elbows, manifolds, and utility lines, since offshore repairs are expensive and compact FPSO modules leave little room for rework.
9. Compare weight reduction benefits against structural integration needs, as lightweight composite piping can improve topside load control while changing support design and installation practice.
10. Request documented compliance with recognized offshore and material standards, including pressure testing, qualification records, and traceability, before accepting any FPSO design for critical service.

Key material questions for glass and ceramic related systems

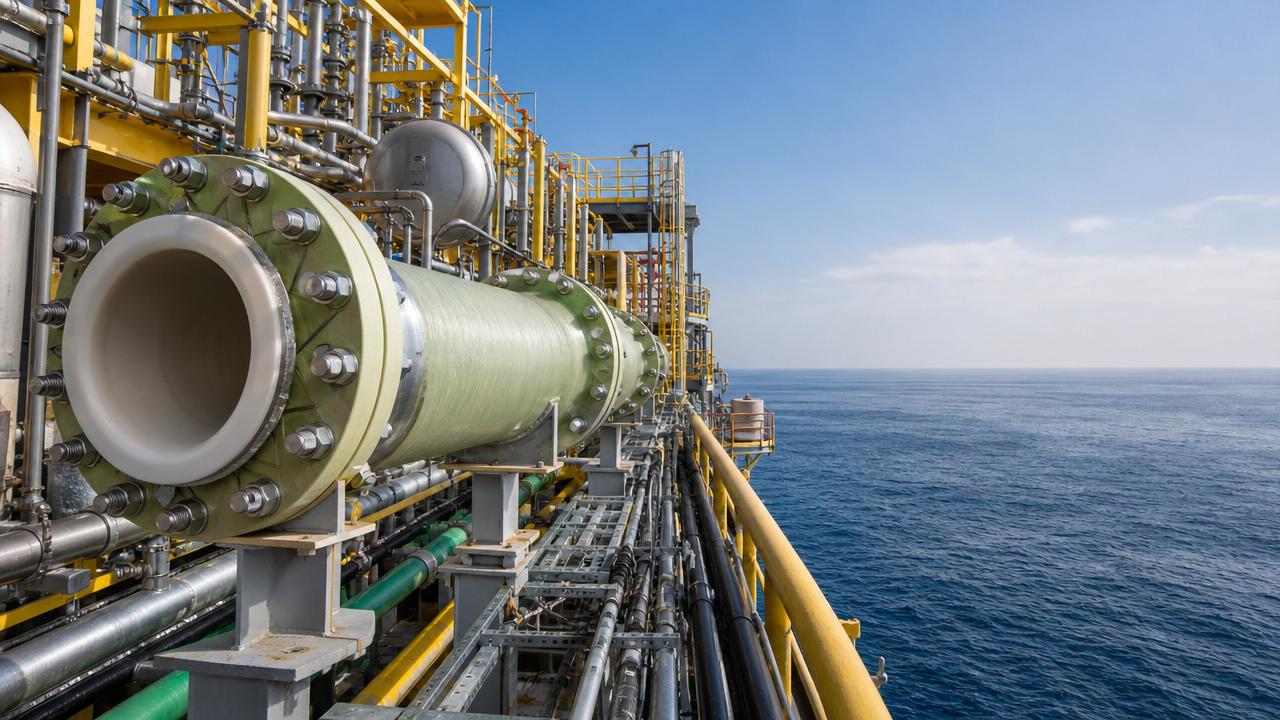

In an FPSO project, glass-reinforced epoxy piping is often evaluated for ballast water, fire water, utility lines, produced water, and selected chemical services. Its value comes from low corrosion, low maintenance, and reduced weight.

However, material selection must go beyond corrosion claims. Resin system, glass reinforcement architecture, liner design, curing quality, and joining method all affect durability in real offshore conditions.

Ceramic-related considerations may also appear in wear zones, coating interfaces, insulating barriers, and abrasion-prone process points. These areas deserve separate review where solids, sand, or aggressive chemicals are present.

For process environments similar to Chemical Plant conditions, chemical compatibility tables and long-term aging data should be checked before freezing the FPSO design basis.

Application notes for different FPSO operating scenarios

High-salinity produced water service

This service pushes corrosion resistance to the front of the FPSO design review. Chlorides, dissolved gases, and scaling chemicals can quickly challenge metallic piping if material selection is too conservative.

In this case, review erosion potential, internal flow velocity, and branch connection details. Composite pipe may perform well, but only when supports, fittings, and joint systems match the hydraulic duty.

Ballast and seawater systems

Seawater systems are common candidates for GRE solutions in an FPSO design. Continuous saline exposure, biofouling treatment, and long piping runs make corrosion resistance and lightweight installation attractive.

The review should include UV exposure during storage, flange sealing reliability, impact risk during installation, and repair procedures after accidental damage inside confined module spaces.

Chemical dosing and utility systems

Small-bore lines are often overlooked in an FPSO design, yet they carry concentrated chemicals that can damage incompatible materials. Confirm compatibility not only with the base fluid but also with cleaning and flushing media.

Where service resembles Chemical Plant processing, request evidence from similar installations, pressure classes, and temperature histories before approval.

Commonly ignored items that create FPSO design risk

One frequent mistake is checking nominal chemical resistance but ignoring upset conditions. Short-term temperature spikes or cleaning cycles may exceed the resin system limit even when normal operation appears acceptable.

Another issue is weak attention to supports and guides. Composite lines in an FPSO design respond differently from steel, so copied support layouts may increase stress at joints or fittings.

Teams also overlook repair logistics. A suitable material onshore may become difficult offshore if cure requirements, spare parts, or trained technicians are unavailable during shutdown windows.

Documentation gaps are equally risky. Without traceability for raw materials, winding parameters, tests, and pressure qualification, long-term confidence in the FPSO system is reduced.

Practical steps before approving an FPSO design

• Build a service matrix that lists each line, fluid, temperature range, pressure, and cleaning regime.
• Match every critical service with qualified material data, not only brochure-level corrosion statements.
• Review support drawings, stress notes, and connection details alongside material specifications.
• Ask for hydrotest records, factory quality procedures, and dimensional inspection evidence.
• Check spare strategy, repair kits, and offshore maintenance procedures before startup planning.

Conclusion and next action

The best FPSO design is not simply the lightest or lowest-cost option. It is the design that fits process chemistry, offshore motion, safety requirements, maintenance reality, and verified material performance.

A disciplined checklist makes this decision clearer. Focus first on corrosion resistance, piping reliability, joint integrity, quality records, and service-specific compatibility for glass-based composite systems.

Before final selection, compare design assumptions against actual operating data and request proof from similar offshore applications. That step will improve FPSO reliability, extend service life, and reduce avoidable lifecycle cost.
