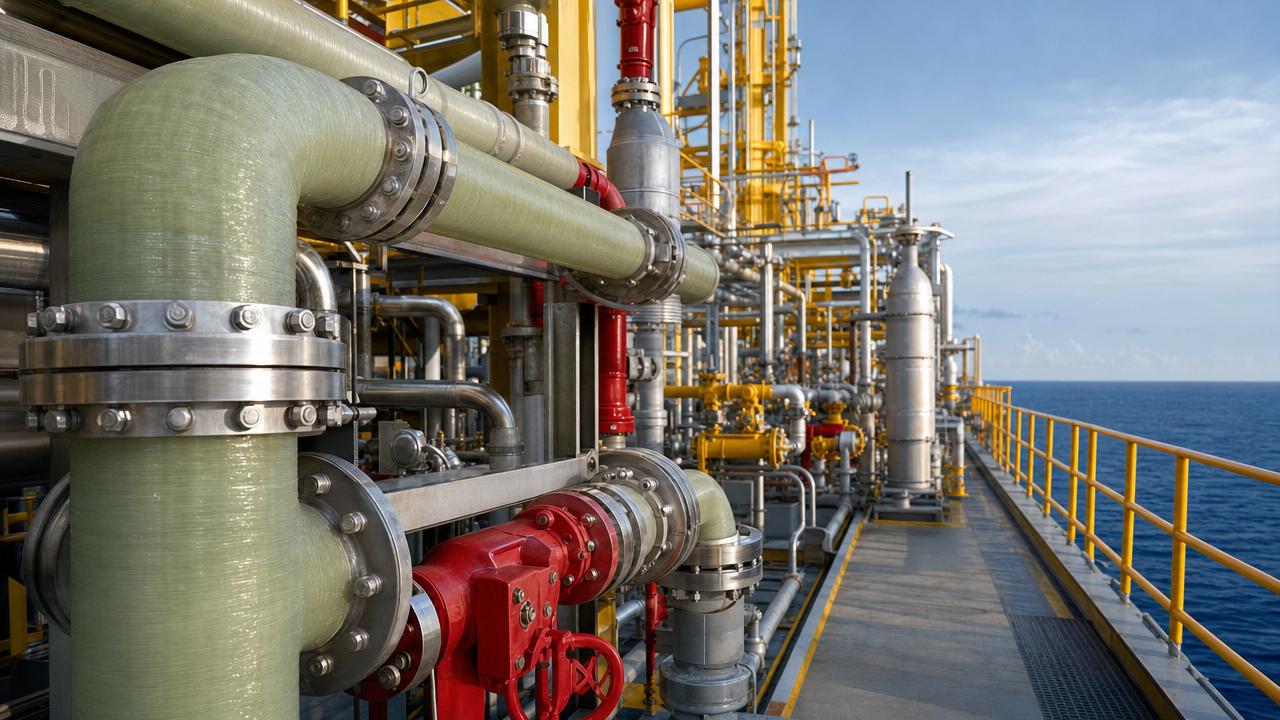

Composite Pipe Applications on FPSO Units: Firewater, Cooling and Drainage

Composite Pipe Applications on FPSO Units: Firewater, Cooling and Drainage

On an FPSO unit, firewater, cooling, and drainage systems must perform reliably under constant exposure to seawater, corrosion, vibration, and demanding offshore operating conditions.

Composite GRE piping offers operators a practical solution by combining lightweight handling, strong corrosion resistance, and long service life.

This article explores how composite pipe systems support safer, more efficient FPSO operations across daily maintenance and long-term asset performance.

What makes composite GRE pipe suitable for FPSO service?

An FPSO operates as a production facility, storage unit, and offshore terminal in one compact asset.

Its piping network must resist seawater, hydrocarbons, chemicals, ultraviolet exposure, and mechanical stress over many years.

GRE pipe is made from glass fiber reinforcement and epoxy resin, forming a composite material with high corrosion resistance.

This structure links the glass materials industry with offshore engineering, where durability and dimensional stability are essential.

Compared with carbon steel, GRE does not rely on internal coating for seawater corrosion protection.

That advantage matters on an FPSO, where access for inspection and coating repair can be limited.

Composite pipe also has lower weight, helping reduce deck load, lifting work, and installation time.

For an FPSO conversion or newbuild, weight savings can support easier routing in congested modules.

• Excellent resistance to seawater and many offshore chemicals.
• Low maintenance demand compared with corroding metallic systems.
• Smooth internal surface supporting stable hydraulic performance.
• Lightweight sections for easier offshore handling.

How does GRE piping improve FPSO firewater systems?

Firewater service is one of the most critical safety systems on an FPSO.

It must deliver enough flow and pressure during emergency conditions, even after long idle periods.

Seawater is commonly used as the firewater medium, creating severe corrosion risk for steel pipe.

GRE firewater piping helps reduce blockage, wall thinning, and corrosion products inside the line.

On an FPSO, this can improve readiness of hydrants, deluge systems, monitors, and sprinkler branches.

Because GRE pipe keeps a smoother bore, friction losses remain more predictable during the service life.

That stability supports hydraulic calculations and helps maintain firewater coverage across distant deck areas.

Firewater systems still require correct engineering, including pressure rating, support spacing, impact protection, and fire performance assessment.

Classification rules and project specifications should define where composite pipe can be installed on an FPSO.

Proper material qualification, joint procedures, and hydrostatic testing are essential before commissioning.

Why is composite pipe selected for FPSO seawater cooling?

Cooling water systems on an FPSO support process equipment, utilities, power generation, and auxiliary machinery.

These systems often circulate seawater continuously, making corrosion control a major operating concern.

GRE pipe suits seawater cooling because epoxy resin protects the glass fiber structure from aggressive marine exposure.

The result is a non-metallic system with strong resistance to internal and external corrosion.

An FPSO cooling network can include main headers, branch lines, pump discharge lines, and return lines.

Where operating pressure and temperature match the design envelope, GRE can provide dependable performance.

Composite piping also limits galvanic corrosion when connected properly with metallic equipment and flanges.

Insulating kits, correct gaskets, and compatible bolts should be reviewed during the FPSO design stage.

For cooling applications, attention should also be given to thermal expansion, anchoring, guides, and vibration sources.

A well-designed support plan reduces stress concentration around bends, tees, reducers, and equipment nozzles.

Where does GRE pipe fit in FPSO drainage systems?

Drainage piping on an FPSO handles open drains, closed drains, deck drains, and oily water collection routes.

These services may contain seawater, rainwater, wash water, hydrocarbons, sand, chemicals, and cleaning agents.

GRE drainage lines offer corrosion resistance where metallic pipe may suffer rapid deterioration.

They are especially useful where standing liquid, intermittent flow, and oxygen exposure combine to accelerate corrosion.

On an FPSO, drainage lines may pass through tight deck spaces and machinery areas.

The lighter weight of composite pipe can simplify installation in these crowded locations.

However, drainage service should not be treated as simple or low risk.

Chemical compatibility, fire zone location, impact exposure, and temperature peaks must be checked carefully.

If fluids may contain solvents or high-temperature discharge, resin selection becomes particularly important.

A correct FPSO drainage specification should define pipe class, joint type, slope, venting, and inspection points.

How does GRE compare with steel, copper nickel, and thermoplastic pipe?

Material selection on an FPSO rarely depends on one property alone.

Pressure, temperature, fire safety, chemical exposure, installation space, and lifecycle cost must be considered together.

Carbon steel offers strength and familiarity, but seawater service requires coating, corrosion allowance, and monitoring.

Copper nickel resists seawater well, yet material cost and theft risk can be concerns.

Thermoplastic pipe may provide corrosion resistance, but temperature limits and fire behavior require close review.

GRE balances corrosion resistance, stiffness, weight, and mechanical performance for many FPSO utility systems.

For an FPSO, the best choice is usually service-specific rather than universal.

GRE is often selected when seawater corrosion, installation weight, and maintenance access dominate the decision.

What design points should be checked before using GRE on an FPSO?

Composite pipe performance depends on both material quality and system engineering.

Before applying GRE on an FPSO, design data should be complete and realistic.

Operating pressure, surge pressure, vacuum conditions, temperature, and fluid composition must be defined.

The piping layout should avoid unnecessary stress from misalignment, rigid restraints, and unsupported spans.

Jointing is another critical factor for FPSO composite systems.

Adhesive bonded joints, laminated joints, and flanged connections each require controlled procedures.

Qualified workers, clean surfaces, curing control, and documented inspection reduce joint failure risk.

Impact protection should be considered where dropped tools, maintenance traffic, or cargo movement may occur.

Fire resistance and smoke requirements should follow applicable class rules and project specifications.

For scrubber-related marine services, related GRE knowledge can be reviewed through The application of GRE piping in marine scrubber systems.

1. Confirm the FPSO service medium and chemical concentration.
2. Verify design pressure, surge conditions, and temperature range.
3. Review support spacing, anchors, guides, and flexibility.
4. Define jointing procedure, curing conditions, and inspection records.
5. Check class approval, fire zone limitations, and testing requirements.

What risks and misconceptions should be avoided?

A common misconception is that corrosion resistance alone guarantees successful FPSO piping performance.

In practice, poor support design or incorrect jointing can reduce the benefit of any composite material.

Another mistake is replacing steel directly without recalculating pipe stress and movement.

GRE behaves differently from metal, especially under thermal expansion, bending, and point loading.

On an FPSO, vibration from pumps and rotating equipment should also be examined.

Flexible connectors, proper supports, and controlled nozzle loads can reduce fatigue concerns.

Incorrect storage and handling may damage pipe ends, sealing surfaces, or laminate layers before installation.

Pipe sections should be protected from impact, contamination, and excessive deformation during offshore logistics.

How can qualified manufacturing support reliable FPSO piping?

Reliable FPSO composite piping begins with stable production, controlled materials, and repeatable testing.

Shandong Ocean Pipe Technology Co., Ltd. was established in 2012 in Dezhou, Shandong, China.

The company focuses on Fiberglass Reinforced Epoxy pipe for oil, gas, shipbuilding, LNG, and chemical applications.

Its factory has 16 winding production lines and 174 sets of pipe fitting winding machines.

Winding micro control systems help improve dimensional consistency and laminate quality for GRE products.

Five static water pressure testing machines support production verification and performance inspection.

Annual GRE pipe production and testing capacity reaches 25,000 tons.

Applications include oil and gas, ship ballast piping, LNG, chemical plants, hot spring pipe, and salt production.

Experience with marine and industrial services helps support FPSO firewater, cooling, and drainage project discussions.

Project references include cooperation with major groups and shipyards in China and overseas markets.

Conclusion: when should GRE be considered for FPSO projects?

GRE pipe should be considered when an FPSO system faces seawater corrosion, difficult access, and long maintenance intervals.

Firewater, cooling, and drainage networks are common areas where composite pipe can add measurable value.

The strongest results come from matching material properties with actual service conditions and class requirements.

A practical next step is to define service data, review the FPSO layout, and compare lifecycle performance.

With proper design, manufacturing, and installation control, GRE piping can support safer and more efficient offshore operations.
